This item is a diesel fuel filter lift pump hose line kit. After years of constant exposure to hot and cold temperatures, the factory fuel hoses gradually break down and deteriorate. So why not replace them now with this great kit. It will fit the following makes and models:
Compatible with 1994-1997 Ford F-250
Compatible with 1994-1997 Ford F-350
Compatible with 1994-1997 Ford F Super Duty
Compatible with 1995-1998 Ford E-350 Econoline Super Duty Vans
Compatible With 7.3L Diesel Engines

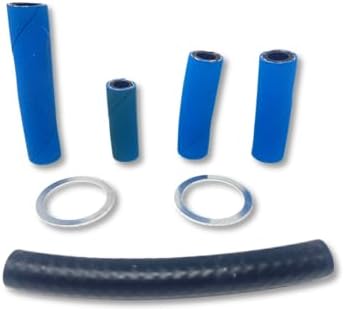

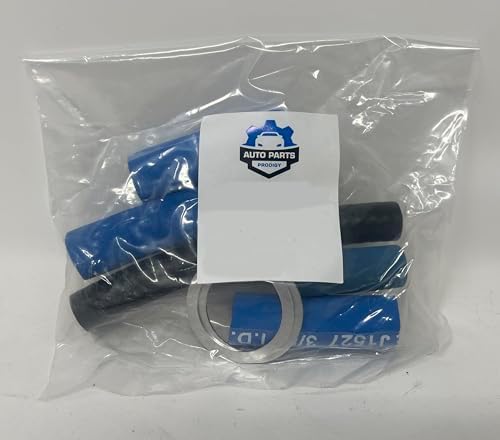

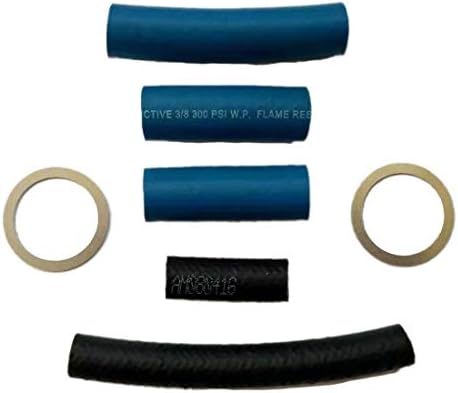

Kit Includes
1x Hose OE Reference # F4TZ-9324-AA / KFL-32 (1 hose)
1x Hose OE Reference # F4TZ-9324-BA / KFL-33 (1 hose)
1x Hose OE Reference # F4TZ-9324-CA / KFL-34 (1 hose)
2x Hose OE Reference # F4TZ-9324-DA / KFL-35 (2 hoses)
2x Sealing Washers OE Reference # F4TZ-9A375-A / 3476437
KFL-33 – Connects fuel pressure regulator to the fuel tank return line. The fuel pressure regulator is located on the driver side of the fuel filter housing. Black hose measuring approximately 1.50 inches. Includes (2) hose clamps, replaces OEM part number F4TZ-9324-BA . KFL-34 – Connects the passenger side top fuel pump port to the fuel filter housing. Blue hose measuring approximately 3.25 inches. Includes (2) hose clamps, replaces OE part number F4TZ-9324-CA. KFL-35: Connects the driver side top fuel pump port to the fuel tank hard-line and the fuel pump lower port to the fuel filter housing. Sold as a set of (2) hoses with . Blue hose measuring approximately 2.12 inches, replaces Motorcraft part number F4TZ-9324-DA . KFL-32 : Bypass hose, connects fuel pressure regulator to the bottom of the fuel filter housing on 1994 and 1995 model year engines; not used on later style filter housings. Includes (2) hose clamps. Blue hose measuring approximately 6.50 inches, replaces Ford part number F4TZ-9324-AA F5TZ-9C024-A. – (bypass hose) is applicable for 1994.5 – 1995 Ford F-Series and E-Series only; not used on later style fuel filter housings. We highly recommend replacing these hoses anytime the fuel filter housing is removed for service or a leak is detected. All listed products are identical to the OEM Ford hoses.
Replacing these hoses anytime the fuel filter housing is removed for service or a leak is detected is highly recommended
Made from High Quality Materials
Engineered and manufactured specifically for the repair environment
Manufactured to meet or exceed strict quality requirements
Replaces OE#s – F4TZ-9324-AA, F4TZ-9324-BA, F4TZ-9324-CA, F4TZ-9324-DA, F4TZ-9A375-A
