Product Dimensions : 0.41 x 0.41 x 0.08 inches; 0.04 ounces
Item model number : SRX-IMU00-DEV
Selling Start Date : March 31, 2024
Manufacturer : Sysrox
Stock number : CACZF512CT
Country of Origin : China

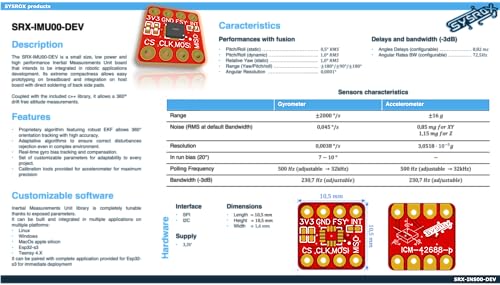

✏️SYSROX IMU 6 DOF/6 AXES HIGH-PERFORMANCE including a 3-axis accelerometer and a 3-axis gyroscope with a sampling frequency of up to 32kHz, perfect for use as an inclinometer…
✏️NEW GENERATION SENSOR (ICM42688p) HIGH PRECISION replacing older, less efficient MPU6050-MPU6500-ADXL345. Superior performance in terms of drift, resolution, noise levels…
✏️3-AXIS ACCELEROMETER PROGRAMMABLE VIA SPI with adjustable measurement range: ±2, ±4, ±8, ±16g.
✏️3-AXIS GYROSCOPE PROGRAMMABLE VIA SPI with adjustable measurement range: ±15.6, ±31.2, ±62.5, ±125, ±250, ±500, ±1000, ±2000 °/sec.

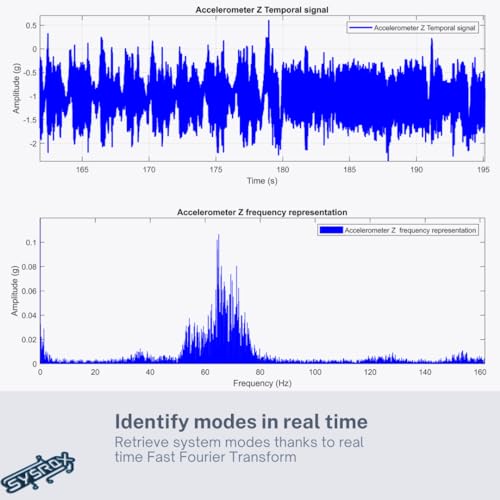

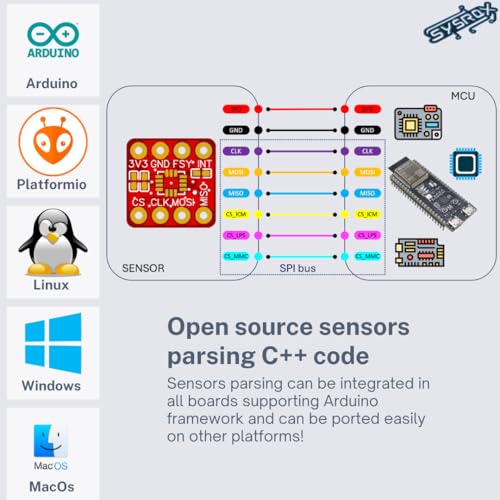

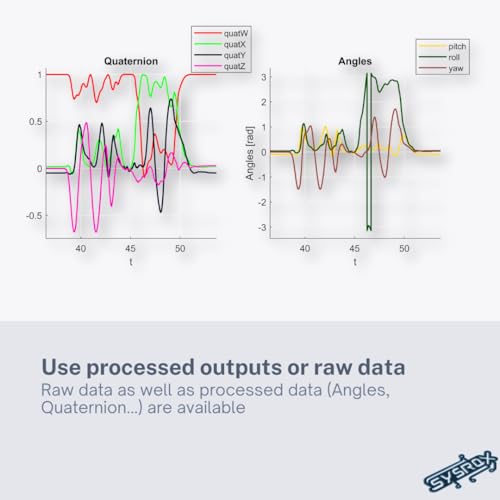

✏️COMPREHENSIVE AND CUSTOMIZABLE SOFTWARE for sensor reading and configuration, sensor fusion at 500Hz using extended Kalman filter, real-time Fast Fourier Transform decomposition, data logging and communication (CAN, protobuf, mavlink), Arduino compatible, perfect for ESP32 or Teensy 4.

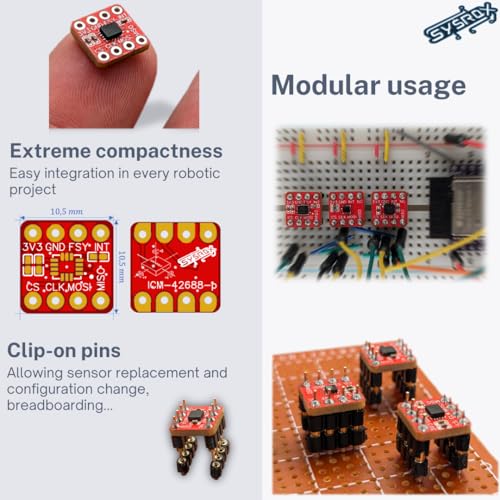

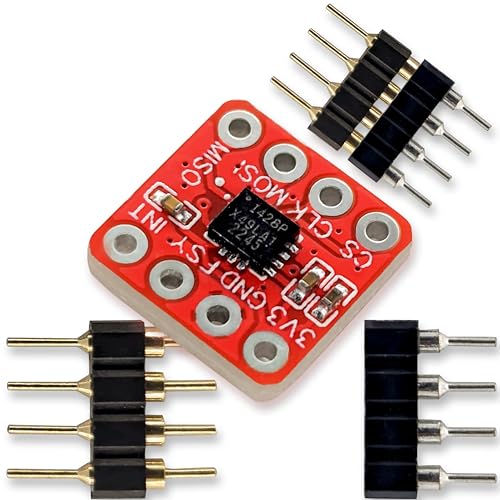

✏️MINIATURE DEVELOPMENT BOARD 1cm x 1cm with 2.54mm pin spacing for easy prototyping of robotic applications, drones… Clipable prototyping pins allowing for use on a breadboard or non-permanent mounting on a support board.
✏️ONLINE COMPREHENSIVE DOCUMENTATION allowing for easy utilization of the board and extension of the offered functionalities.
